eXmark Zero Turn Riders


Quest S-Series Front Steer

Quest S-Series Frint Steer


Gallery

No one gives you more pro-grade features in a residential rider.

It's a simple concept, really: if you want professional-grade cut quality and performance in a residential mower, then use what the pros use. Step up to Exmark and our premium residential zero-turn riders. Exmark Quest mowers feature more professional-grade features. More comfort. And, more value. Giving you a perfectly mowed lawn in no time. Every time. Time after time.

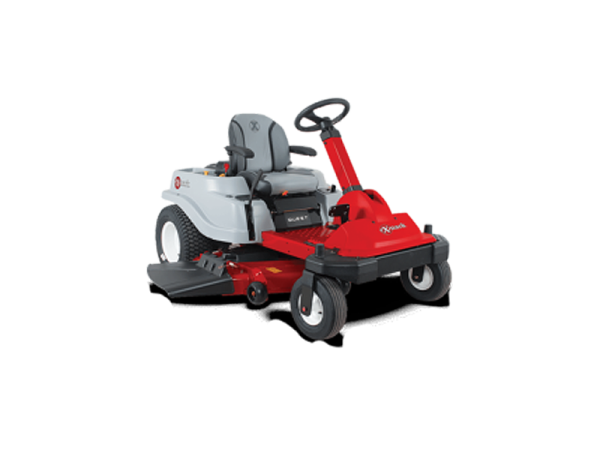

eXmark Quest Series S

Specifications

  • Equipment


    Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50
    Cup Holder Standard
    Drive Tires 18 x 7.50-8, 4-ply Turf Tech TL
    Electrical 12-volt battery with 15-amp alternator.
    Front Caster Tires 11 x 4-5 ribbed tread, pneumatic
    Parking Brake Automatic-actuated pawl brake.
    Seat Commercial Grade High Back contoured foam padded with armrests. Hinged mounting, spring suspension. Adjustment: Fore and aft from Operators’ Position
    Steering Control Steering wheel controls direction of front casters and independent hydraulic transaxles in a turn for maximum control. Steering column is adjustable to operator preference.
    Tractor Frame Unibody, Riveted 10 ga. Steel
  • DECKS


    Width / Cutting Deck 42
    Blade Tip Speed Approximately 18,500 fpm.
    Blades 2 Blades at 21.60
    Cutting Heights 1.5
    Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
    Deck Style Floating Deck
    Deck Style Description Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
  • MISCELLANEOUS


    Curb Weight -
    Height 40.7 in. (103.4 cm
    Length 81.7 in. (207.5 cm)
    Width 54.1 in. (137.4 cm)
  • POWER COMPONENTS


    Fuel Type Gas Carbureted
    Air Filter Standard Engine Manufacturer's air filter
    Carb Compliant No
    Casters .25
    Deck Lift Standard; lever lift. Foot-assist lifts the deck to maneuver around obstacles.
    Drive Hydro-Drive
    Drive Description Two Hydro-Gear ZT2200 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir
    Drive Wheel Release Allows unit movement without engine running.
    Engine Brand Exmark
    Engine Displacement 708
    Engine Model 708
    Engine Series V-Twin
    Engine Speed 3,300 rpm
    Engine Type Carbureted
    Fuel Capacity High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
    Fuel Indicator Translucent Visual
    PTO Engagement MagStop electromagnetic 80-ft-lbs clutch
    ROPS None
    Safety Package Operator Presence Controls (OPC) and drive system interlock.
    Speed Infinitely variable speed selection from 0–7 mph (11.3 km/h) forward. 0–3.4 mph (5.5 km/h) reverse.
